Site analysis checklist: plan smarter with 3D tech

Missed site details cost real money. A contaminated parcel discovered post-acquisition, a zoning conflict flagged only at planning committee, or a flood risk overlooked during feasibility — each of these can derail timelines and inflate budgets before a single foundation is poured. For urban planners, architects, and real estate developers, a rigorous site analysis checklist is the first line of defence. But a static list alone is no longer enough. Pairing your checklist with modern 3D workflows transforms raw data into actionable intelligence, helping you spot risks earlier, communicate proposals more clearly, and secure approvals with greater confidence.

Key Takeaways

Point	Details
Checklists prevent oversights	A comprehensive site analysis checklist ensures no key factor is missed in planning or design.
3D tools accelerate approvals	Integrating 3D mapping and visualisation shortens approval times and reveals more site variables.
Phase analysis is critical	Layering due diligence, design, and budgeting phases with data guarantees thorough site vetting.
Customise for edge cases	Every checklist should adapt for complex sites like slopes, contamination, or historic areas.
Integrated workflows de-risk projects	Early use of 3D data, GIS, and validated checklists help control costs and prevent approval setbacks.

Core site analysis checklist components

A well-structured checklist does two distinct jobs: it inventories what exists on and around a site, and it analyses what those conditions mean for your design. Conflating the two is a common error that leads to vague reports and missed implications. The site analysis principles that underpin good practice separate observation from interpretation, giving each stage its own rigour.

Core components of a modern site analysis checklist include the following categories:

Location and accessibility: Road networks, public transport links, pedestrian routes, and proximity to amenities.
Topography and soil: Ground levels, slope gradients, soil bearing capacity, and drainage patterns.
Climate and sun path: Prevailing winds, solar orientation, rainfall, and microclimate effects from adjacent buildings.
Zoning and regulations: Permitted uses, height limits, setbacks, density controls, and overlay districts.
Utilities and infrastructure: Water, sewer, electricity, gas, and telecoms capacity and connection points.
Environmental factors: Flood zones, ecological habitats, tree preservation orders, and contamination history.
Market and community impact: Comparable development, local demand, stakeholder sensitivities, and social infrastructure.
Existing structures and land use: Building condition, heritage status, current occupancy, and demolition requirements.

The full checklist guide from ARCON Nigeria offers a useful reference for structuring these categories in practice.

Checklist item	Why it matters	3D method or data source
Location and access	Determines connectivity and viability	GIS mapping, satellite imagery
Topography and soil	Informs foundation design and drainage	LiDAR surveys, geotechnical data
Climate and sun path	Shapes orientation and energy performance	Solar simulation software
Zoning and regulations	Defines development envelope	Planning portal overlays, GIS layers
Utilities and infrastructure	Reveals capacity constraints	Utility mapping, BIM models
Environmental factors	Flags legal and ecological risks	Environmental GIS, drone surveys
Community and market	Aligns project with local context	Demographic data, stakeholder mapping
Existing structures	Identifies reuse or demolition needs	Photogrammetry, point cloud scanning

Pro Tip: Apply a RAG (red, amber, green) scoring system to each checklist item. Red flags require resolution before design begins; amber items need monitoring; green items can proceed. This simple framework keeps multidisciplinary teams aligned on priorities without lengthy written reports. Pair it with the urban design checklist approach for even sharper results.

Layered site analysis: phases and methodologies

With the fundamentals defined, it’s vital to apply them using a phased, methodical approach. Layering data collection across project phases prevents the costly gaps that arise when teams rush straight to design without adequate groundwork.

The layered data collection methodology follows a logical sequence: map and parcel data first, then zoning and policy overlays, utilities, topography, environmental constraints, planning overlays, and finally existing conditions on the ground.

Acquisition and due diligence: Gather title documents, parcel maps, zoning certificates, and environmental records. Commission a Phase I environmental site assessment if contamination is suspected. This phase establishes whether the site is viable at all.
Design and engineering: Overlay topographic surveys, utility mapping, and shadow studies onto your base data. Begin massing models to test how zoning constraints interact with programme requirements.
Budgeting and feasibility: Integrate cost data with site constraints. Use 3D massing to model yield scenarios and test sensitivity to planning conditions. Confirm infrastructure costs with utility providers.

The contrast between traditional and integrated workflows is significant:

Factor	Traditional (manual) workflow	Integrated 3D workflow
Data collection speed	Weeks of site visits and desk research	Days using drone surveys and GIS
Error risk	High — manual transcription errors	Low — automated data processing
Stakeholder communication	2D drawings, written reports	Interactive 3D models, real-time views
Cost of errors	Discovered late, expensive to fix	Identified early, low-cost to resolve
Iteration speed	Slow — redraw for each scenario	Fast — parametric updates in minutes

The developer checklist from Judge Associates reinforces the value of phased discipline, particularly for complex mixed-use schemes.

Pro Tip: Start documenting with GIS overlays and digital surveys from day one, even before formal appointment. Early spatial records become invaluable reference points when disputes or design changes arise later. Explore efficient 3D workflows to see how leading teams structure this from the outset.

Harnessing 3D technology for superior outcomes

Once you’ve set up a layered process, it’s time to leverage the latest technology for unbeatable insight. The gap between teams using traditional methods and those using integrated 3D tools is widening rapidly, and the consequences for approval timelines are measurable.

Key 3D technology tools for site analysis include:

LiDAR (Light Detection and Ranging): Captures precise topographic data, vegetation height, and building geometry at scale. Ideal for complex terrain and dense urban sites.
UAVs (Unmanned Aerial Vehicles): Drone surveys provide rapid photogrammetric data, thermal imaging, and high-resolution orthophotos at a fraction of traditional survey costs.
GIS mapping platforms: ArcGIS, QGIS, and similar tools integrate spatial datasets — zoning, utilities, flood zones, demographics — into a single analytical environment.
3D modelling and simulation software: Tools such as TestFit, SketchUp, ArcGIS CityEngine, and Autodesk Forma enable massing studies, shadow analysis, wind simulation, and microclimate modelling.

The impact on project timelines is well documented. Teams using immersive 3D visualisations achieve planning approvals up to 40% faster, because decision-makers and community stakeholders can engage with proposals intuitively rather than interpreting abstract drawings.

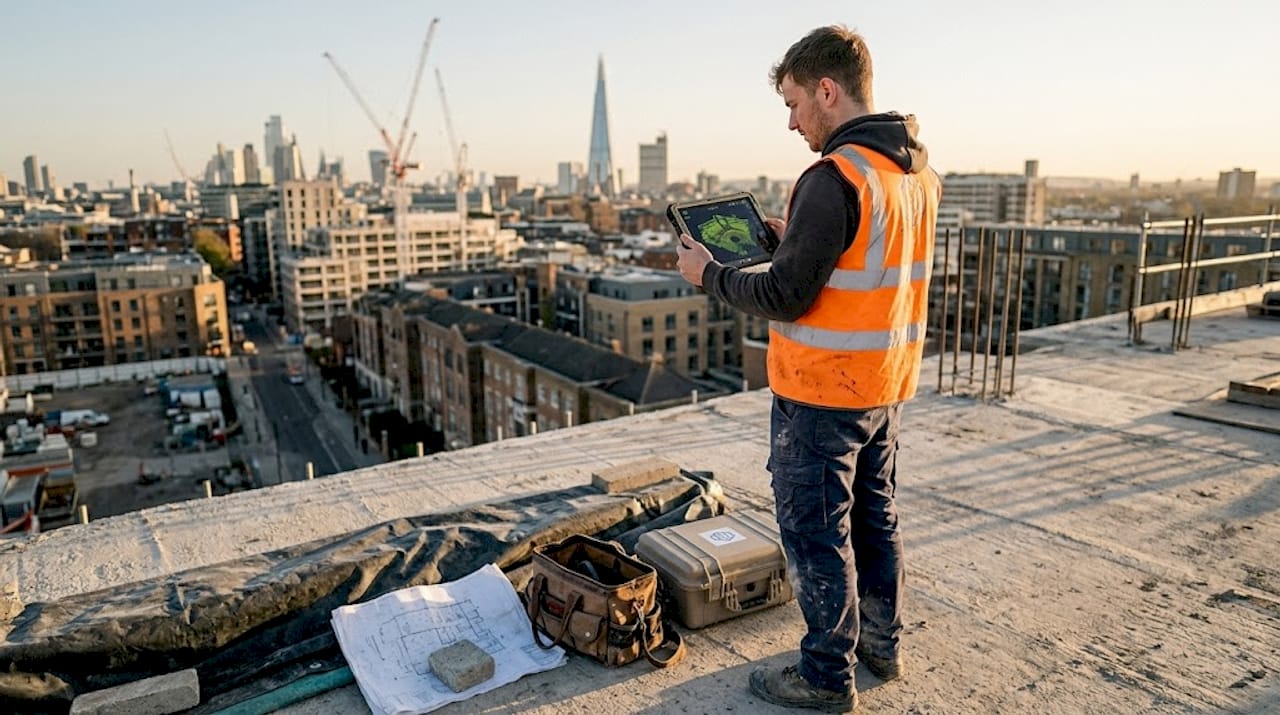

The typical 3D workflow runs as follows: scan the site using LiDAR or drone photogrammetry, process the point cloud data within a GIS environment, then simulate design scenarios using 3D modelling software. Each stage feeds the next, creating a continuous data loop rather than a series of disconnected handoffs.

For those new to the process, the building modelling tutorial provides a practical starting point. The broader landscape of urban design tech tools from the American Planning Association is also worth reviewing for comparative context.

Pro Tip: Always cross-validate drone LiDAR data against municipal GIS datasets. Discrepancies often reveal outdated council records or boundary anomalies that would otherwise surface as costly surprises during construction. For sites with significant vertical complexity, a hybrid terrestrial and aerial LiDAR approach delivers the most complete picture.

Expert edge cases and advanced checklist considerations

Beyond the standard items, advanced scenarios demand specialist adaptation of your checklist. Certain site conditions introduce layers of complexity that a generic checklist simply cannot address without deliberate customisation.

Consider these challenging scenarios and how to adapt your approach:

Steep slopes and floodplains: Standard topographic surveys are insufficient. Commission geotechnical investigations to assess slope stability, bearing capacity, and drainage behaviour. Overlay Environment Agency flood mapping with LiDAR-derived terrain models to identify localised flood risk that broader datasets miss.
Historic and cultural assets: Sites near listed buildings or scheduled monuments require heritage impact assessments. Engage a conservation specialist early, and use environmental impact in planning tools to model the visual effect of new development on protected assets.
Informal settlements: AI-LiDAR segmentation techniques are now enabling planners to map informal built fabric with precision, distinguishing structure types, materials, and densities at scale — a capability that manual surveys cannot replicate cost-effectively.
Contaminated land: Any site with an industrial history requires a Phase I environmental assessment as a minimum. If Phase I identifies potential contamination pathways, a Phase II intrusive investigation is mandatory before design can proceed.
Boundary disputes: Title reviews and Land Registry searches should be completed at acquisition stage. Overlaying legal boundaries onto LiDAR-derived site surveys frequently reveals encroachments that paper records obscure.

The pre-construction checklist from Substrata highlights that Phase I/II assessments are among the most frequently omitted items on developer checklists, often with significant financial consequences.

‘Always include community impact and sustainability overlays for master planning. These are not optional extras — they are the factors most likely to determine whether a scheme gains public and political support.’

Why proactive, integrated 3D workflows de-risk your entire project

A checklist is only as powerful as the data behind it. This is the insight that separates teams who consistently deliver on time and within budget from those who repeatedly encounter late-stage surprises. Checklists alone do not prevent overruns. What prevents overruns is integrating that checklist with live, visual, spatially accurate data from the earliest possible stage.

Planners using 3D tools regularly report identifying community objections, environmental constraints, or legal blockers months before traditional methods would surface them. That time advantage translates directly into cost savings and smoother stakeholder relationships. The efficient urban planning workflow that combines GIS and LiDAR with parametric tools enables rapid feasibility testing across multiple scenarios simultaneously — something no paper checklist can replicate.

Our recommendation is clear: engage 3D workflows from the due diligence phase, not after planning submission. The earlier you model constraints spatially, the more options you retain. Waiting until design stage to discover a utility easement or a heritage buffer zone is an expensive habit.

Transform checklist insights into successful urban plans

A thorough site analysis checklist, powered by 3D technology, gives your team a decisive advantage at every project stage. From early feasibility through to planning submission, the ability to visualise, test, and communicate site conditions in three dimensions reduces risk and builds consensus faster.

The 3D Cityplanner platform brings together the tools you need to move from checklist to completed plan with confidence. Whether you’re assessing shadow impacts, simulating sound environments, or generating massing options automatically, the platform supports your team at every stage. Explore the architecture site analysis resources to see how 3D Cityplanner can sharpen your next site assessment and accelerate your path to approval.

Frequently asked questions

What is the first step in a site analysis checklist?

The first step is gathering map and parcel data to establish the site’s location, legal boundaries, and initial constraints. This foundational layer informs every subsequent phase of analysis.

How does 3D technology improve site analysis?

Tools like LiDAR and GIS mapping deliver greater accuracy and spatial insight than traditional surveys, and immersive 3D visualisations can accelerate planning approvals by up to 40%. They also make complex data far easier for non-technical stakeholders to understand.

What are key environmental factors to consider in site analysis?

Prioritise soil stability, flood risk, existing vegetation, and contamination history. Steep slopes and contaminated sites require geotechnical investigation and formal Phase I or Phase II environmental assessments before design work begins.

When should you conduct a community impact or market analysis?

Conduct community impact analysis during the feasibility phase to align the project with local needs from the outset. Including this early reduces the risk of objections at planning stage and strengthens the case for approval.

Are 2D checklists still relevant with 3D tools available?

2D checklists remain useful for structured inventory, but 3D data-driven tools offer deeper analytical insight and faster iteration. The most effective teams use both: the checklist as a framework and 3D tools as the analytical engine.
