Work in One Browser Session: GIS and BIM Integration for Planners

GIS integration in urban planning links parcel data, elevation models and zoning rules directly into 3D scenario tools, so massing, sunlight and capacity decisions rest on verified data rather than sketches. Combined with BIM workflows and standards such as CityGML and buildingSMART, this approach shortens feasibility studies and gives stakeholders clearer visuals. Platforms like 3D Cityplanner put this into practice. The sections below walk through the workflow, the data models involved and a checklist for your first project.

TL;DR:A unified, connected environment allows for faster site appraisals, realistic massing tests, and direct KPI calculations, reducing errors and rework.Implementing a clear data model with authoritative layers, consistent coordinate systems, and standardized attribute definitions is critical for accurate scenario comparison.Building a minimal initial model and running one targeted analysis, like sunlight or visibility, helps identify errors early before expanding to larger scales.Browser-based platforms enable real-time scenario comparison, sharing, and KPI tracking without local software, speeding up feasibility studies and public consultations.Institutional governance, role assignment, and recurring update cycles are essential to ensure GIS–BIM integration remains a sustainable, scalable planning practice.

3D CityplannerBring Planning Data TogetherUse a browser-based digital twin to design, analyse and compare urban development scenarios with GIS data and 3D city models.Explore 3D Cityplanner

Table of Contents

What does GIS integration in urban planning actually deliver?

GIS integration in urban planning turns scattered datasets into a shared spatial foundation that every discipline can query, model and compare. Instead of a planner requesting a parcel extract from one department and a height limit from another, the data sits in one connected environment, ready for 3D analysis.

The practical gains show up quickly on real projects:

  • Faster site appraisal, because parcel boundaries, cadastral data and zoning constraints load automatically instead of being re-drawn by hand.
  • Better massing decisions, since building envelopes can be tested against sunlight, visibility and density rules before a single architectural sketch exists.
  • Quantitative KPIs, such as floor area ratio, parking provision or green space per resident, generated directly from the model rather than estimated.
  • Fewer rounds of rework, because errors surface during data validation instead of after a scheme has already gone to committee.

A municipality comparing three redevelopment densities, for example, can present height, shadow impact and unit yield side by side rather than as three separate reports. That single change, replacing static comparison with live scenario data, is often what turns a contentious consultation into a productive one.

Which technical components and data models do you need?

Urban GIS solutions only work when the underlying data model is coherent. Before comparing scenarios in 3D, a planning team needs to resolve which layers, formats and reference systems will carry the project.

  1. Authoritative base layers. Cadastral parcels, address and building registers (such as the Netherlands’ BAG), LiDAR-derived digital terrain models, utility networks and current zoning plans form the non-negotiable foundation.
  2. 3D and BIM formats. CityGML, typically at LOD1 or LOD2 for city-scale context, handles the urban fabric, while IFC exports carry the detailed building data from architects and engineers.
  3. Service-based delivery. WMS and WFS endpoints, alongside modern GIS feature services, let planning teams pull live layers instead of managing static exports that go stale within weeks.
  4. Coordinate and vertical alignment. Every dataset must sit on the same coordinate reference system and vertical datum; a terrain model referenced to a different height datum than a building’s ground floor level will silently distort sunlight and drainage analysis.
  5. Attribute harmonisation. Field names, units and classification codes rarely match across sources on the first import, and reconciling them early avoids rebuilding scenario logic later.

ArcGIS Urban’s documented data model illustrates this well: it separates the canonical urban database from the design database used for draft scenarios, which keeps comparisons controlled and auditable.

How do you build a GIS–BIM integration workflow step by step?

A repeatable workflow matters more than any single tool. The sequence below reflects how planning departments and consultancies typically move from a blank project to a stakeholder-ready deliverable.

  1. Define scope, outputs and owners. Agree what the scenario needs to answer (density options, infrastructure capacity, visual impact) and who owns each dataset.
  2. Set success metrics. Decide upfront which KPIs matter, whether that is units delivered, parking ratio or percentage of building facades in shadow after 3pm.
  3. Collect and validate authoritative data. Pull cadastral, terrain and utility layers, then check for gaps or outdated records before modelling begins.
  4. Confirm CRS and vertical references. Align every layer to one coordinate system and one height datum, and document the choice.
  5. Build a minimal 3D context. Generate an LOD1 or LOD2 city model and map BIM element identifiers to the corresponding GIS features so building-level detail connects back to its parcel.
  6. Run targeted analyses. Test sunlight, visibility and accessibility for each scenario, then iterate the massing or programme based on results.
  7. Prepare stakeholder deliverables. Package comparative visuals and KPI tables for council briefings, developer negotiations or public consultation.
  8. Schedule update cycles. Set a cadence for refreshing base data, since a scenario built on an 18-month-old address register loses credibility fast.

Pro Tip: Run your first sunlight or visibility analysis on the smallest viable model, a single block rather than the whole district, so you catch coordinate or datum errors before they propagate through a larger scenario set.

High-resolution imagery paired with professional datasets can also stand in for a slow field survey during early feasibility work, as one metropolitan infrastructure project demonstrated.

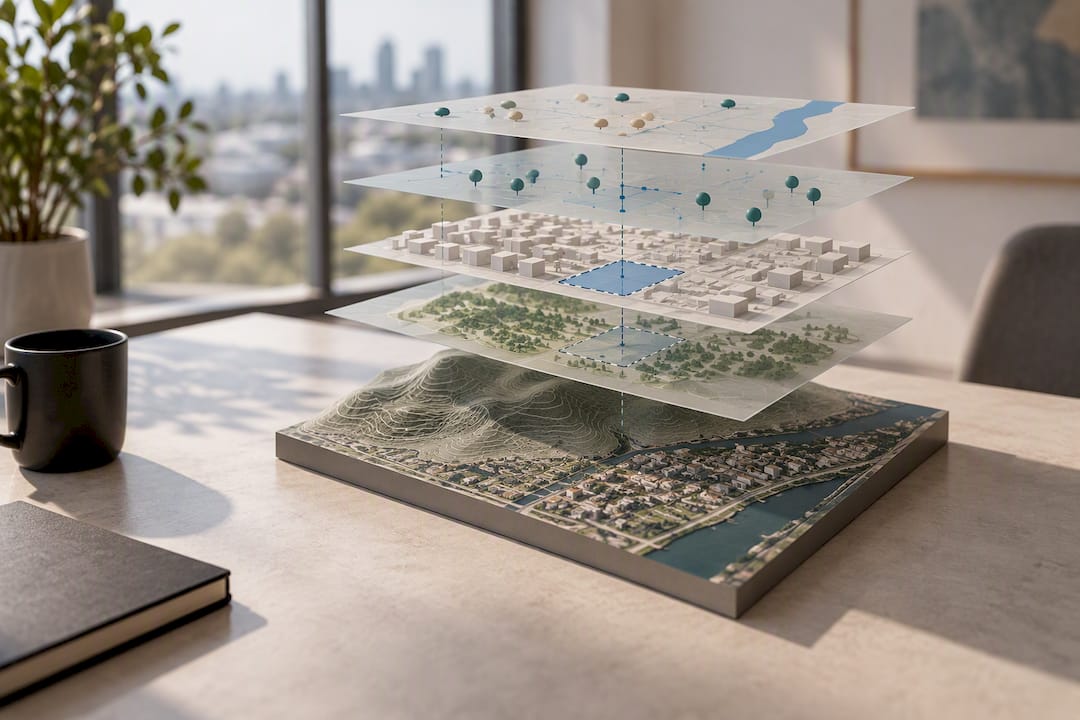

Layered imagery and datasets for feasibility

Which standards and national datasets should you plan around?

Interoperability between GIS and BIM depends on a handful of standards most Dutch planning teams will encounter repeatedly.

  • CityGML structures 3D city models at various levels of detail, from simple block massing (LOD1) to detailed roof and facade geometry (LOD2 and above).
  • buildingSMART maintains IFC and related interoperability specifications that keep BIM exports readable outside their originating software.
  • NEN, the Dutch standards body, publishes technical specifications covering geospatial and construction data quality that many public tenders now reference directly.
  • National registers such as the cadastre, BAG and national LiDAR datasets update on different cycles, so governance needs to track which version fed which scenario.
  • A single source of truth, with clear licensing terms and a documented QA check before publication, prevents two departments from working off contradictory data.

How do you organise roles and stakeholder communication?

Integration only becomes repeatable once responsibility for each dataset and deliverable is explicit. Without that, the same coordinate mismatch or outdated zoning layer tends to resurface project after project.

  • Assign a named owner for each core dataset, so questions about accuracy or update timing have one clear point of contact.
  • Define the handoff between GIS specialists, BIM modellers and planners in writing, including what format each side expects to receive.
  • Build a standard stakeholder pack template, covering scenario comparisons, KPI tables and visual massing studies, so council and developer briefings do not start from a blank page each time.
  • Publish on a fixed schedule rather than ad hoc, which keeps expectations aligned across departments and external partners.

How does a browser-based digital twin support this workflow in practice?

A browser-based digital twin platform such as 3D Cityplanner puts the workflow above into a single working environment rather than a set of disconnected tools. It ingests GIS layers, including parcels, zoning and terrain data, directly into a 3D context without local software installation, which matters when a planning department, an architecture firm and a municipal client all need to view the same model.

Once that base is in place, teams can generate massing options, compare development capacity across scenarios and pull KPIs such as unit yield or green space ratio without rebuilding the model each time. Practical outcomes reported by planning teams using this kind of approach include:

  • Faster feasibility studies, since scenario comparison happens inside one browser session instead of across separate GIS and CAD files.
  • Clearer visuals for public consultation, where a shaded massing comparison communicates more than a written report.
  • Shared access for consultants and municipal staff working on the same redevelopment site without file exchange delays.

What should your first GIS–BIM integration project cover?

Week one and month one deserve a tight, achievable scope rather than an attempt to integrate everything at once.

  1. Decide the deliverables and name a data owner for each core layer.
  2. Confirm the coordinate reference system and vertical datum before any modelling starts.
  3. Build a minimal LOD0 or LOD1 context covering just the project area.
  4. Run one analysis, sunlight or visibility, and review the result with the team.
  5. Set an update cadence, agree stakeholder checkpoints and log what went wrong for the next project.

Why institutional embedding matters more than the tools themselves

Urban planning has always meant shaping cities through legal, social and technical instruments, and GIS–BIM integration is simply the latest technical layer in that tradition. What concerns me is how often GeoAI and 3D scenario tools stay confined to a single pilot project, celebrated once, then quietly shelved when the consultant leaves. Institutional embedding, budget lines, governance rules, recurring update cycles, is what separates a genuine planning capability from a demo that never scales.

— Anne Dullemond

Put your GIS and BIM data to work in one browser session

Most planning teams patch together separate GIS software, CAD tools and spreadsheets to compare development scenarios, which means re-exporting data every time a council member asks for one more variant. 3D Cityplanner is a browser-based alternative: GIS layers, 3D massing and project KPIs live in one place, with no local installation and no file handoffs between departments.

For a redevelopment site or feasibility study, that means testing height and density options against sunlight, visibility and capacity metrics in the same session where you first loaded the parcel data. Plans start at €79 per month for Starter, with higher tiers for larger teams and special rates for students; check the client’s pricing page for details. If your department is evaluating a site now, requesting a demo is the fastest way to see whether your own GIS data loads cleanly into a working scenario.

Sources

FAQ

What is GIS–BIM integration in urban planning?

It is the practice of connecting geospatial datasets, such as parcels, zoning and terrain, with detailed BIM building models so planners can analyse and compare development scenarios in one 3D environment. This removes the need to manually reconcile separate GIS and CAD outputs for every project.

Which data model do I need for a GIS integration project?

Most projects need authoritative base layers (cadastre, address registers, LiDAR terrain), CityGML for the 3D city context, and IFC exports for detailed building data from architects. Structured data models such as ArcGIS Urban’s show how to separate canonical data from draft design scenarios.

How long does a typical GIS–BIM integration project take?

A minimal first project, covering scope definition, data validation and one analysis, can be completed within a few weeks if the base data is already available. Larger municipal rollouts with multiple departments and datasets take longer, largely due to governance and data ownership decisions rather than the technology itself.

Does 3D Cityplanner support GIS data integration?

Yes, 3D Cityplanner is a browser-based digital twin platform that ingests GIS layers directly and supports 3D massing, scenario comparison and KPI tracking without local software installation. Pricing starts at €79 per month for the Starter plan, with higher tiers for teams and organisations.

What standards should planners reference for interoperability?

CityGML handles 3D city model structure at different levels of detail, while buildingSMART’s IFC standards keep BIM data interoperable across software. In the Netherlands, NEN publishes additional technical specifications for geospatial and construction data quality.
